一、概述

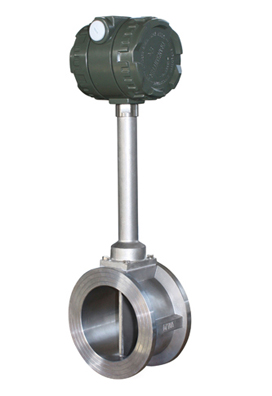

ARSLUB脈沖型渦街流量計是基于卡門渦街原理而研制成功的一種具有國際先進水平的新型流量計。由于它具有其它流量計不可兼得的優點，自七十年代以來得到了迅速發展，據有關資料顯示，現在日本，歐美等發達國家使用智能渦街流量計的比例大幅度上升，已廣泛應用于各個領域。將在未來流量?jī)x表中占主導地位，是孔板流量計最理想的替代產品。
ARSLUB脈沖型渦街流量計適用于測量過熱蒸汽、飽和蒸汽、壓縮空氣和一般氣體、水和液體的質量流量和體積流量。
二、特點
★ 結構簡單而牢固，無可動部件，可靠性高，長期運行十分可靠。
★ 安裝簡單，維護十分方便。
★ 檢測傳感器不直接接觸被測介質，性能穩定，壽命長。
★ 輸出是與流量成正比的脈沖信號，無零點漂移，精度高。
★ 測量范圍寬，量程比可達
★ 壓力損失較小，運行費用低，更具節能意義。
★ 在一定的雷諾數范圍內，輸出信號頻率不受流體物理性質和組分變化的影響，儀表系數僅與漩渦發生體的形狀和尺寸有關，測量流體體積流量時無需補償，調換配件后一般無需重新標定儀表系數。
★ 應用范圍廣，蒸汽、氣體、液體的流量均可測量.
三、工作原理
ARSLUB脈沖型渦街流量計在測量管中垂直插入一個柱狀物時，流體通過柱狀物兩側就交替地產生有規則的旋渦(如下圖所示)，這種旋渦列被稱為卡門渦街�？ㄩT渦街的釋放頻率與流體的流動速度及柱狀物的寬度有關，可用下式表示: f=St·v/d
式中: f-卡門渦街的釋放頻率
St-系數(稱為斯特羅哈數)
v-流速
d-柱狀物的寬度
卡門渦街釋放頻率f和流速v成正比，因此通過測量卡門渦街釋放頻率就可算出瞬時流量。
斯特羅哈數是渦街流量計的重要系數。在曲線的St≈0.17的平直部分，旋渦的釋放頻率與流速成正比，所以檢出頻率f就可求得流速v，由v求出體積流量。
ARSLUB脈沖型渦街流量計的旋渦釋放頻率是由旋渦交替地作用于檢測傳感器(探頭)上的應力通過在它內部的壓電元件來檢出的。
|
四、飽和水蒸氣密度及鉑電阻-溫度對照表 |
|
分度號：Pt100 R0=100.00Ω 壓力為絕對壓力 |
|
|
|
|
|
|
|
|
|
|
|
|
|
溫度 |
壓力 |
密度 |
鉑電阻 |
溫度 |
壓力 |
密度 |
鉑電阻 |
溫度 |
壓力 |
密度 |
鉑電阻 |
|
℃ |
bar |
kg/m3 |
Ω |
℃ |
bar |
kg/m3 |
Ω |
℃ |
bar |
kg/m3 |
Ω |
|
100 |
1.1033 |
0.5997 |
138.50 |
138 |
3.414 |
1.864 |
152.83 |
176 |
9.137 |
4.723 |
166.98 |
|
101 |
1.0500 |
0.6108 |
138.88 |
139 |
3.513 |
1.915 |
153.20 |
177 |
9.353 |
4.829 |
167.35 |
|
102 |
1.0878 |
0.6388 |
139.26 |
140 |
3.614 |
1.967 |
153.58 |
178 |
9.574 |
4.937 |
167.72 |
|
103 |
1.1267 |
0.6601 |
139.64 |
141 |
3.717 |
2.019 |
153.95 |
179 |
9.798 |
5.048 |
168.09 |
|
104 |
1.1668 |
0.6321 |
140.02 |
142 |
3.823 |
2.073 |
154.32 |
180 |
10.027 |
5.160 |
168.46 |
|
105 |
1.2080 |
0.7046 |
140.39 |
143 |
3.931 |
2.129 |
154.70 |
181 |
10.259 |
5.274 |
168.83 |
|
106 |
1.2504 |
0.7277 |
140.77 |
144 |
4.042 |
2.185 |
155.07 |
182 |
10.496 |
5.391 |
169.20 |
|
107 |
1.2941 |
0.7515 |
141.15 |
145 |
4.155 |
2.242 |
155.45 |
183 |
10.738 |
5.509 |
169.57 |
|
108 |
1.3390 |
0.7758 |
141.53 |
146 |
4.271 |
2.301 |
155.82 |
184 |
10.983 |
5.629 |
169.94 |
|
109 |
1.3852 |
0.8008 |
141.91 |
147 |
4.398 |
2.361 |
156.19 |
185 |
11.233 |
5.752 |
170.31 |
|
110 |
1.4327 |
0.8265 |
142.29 |
148 |
4.510 |
2.422 |
156.57 |
186 |
11.488 |
5.877 |
170.68 |
|
111 |
1.4815 |
0.8528 |
142.66 |
149 |
4.634 |
2.484 |
156.94 |
187 |
11.747 |
6.003 |
171.05 |
|
112 |
1.5316 |
0.8798 |
143.04 |
150 |
4.760 |
2.584 |
157.31 |
188 |
12.010 |
6.132 |
171.42 |
|
113 |
1.5832 |
0.9075 |
143.42 |
151 |
4.889 |
2.613 |
157.69 |
189 |
12.278 |
6.264 |
171.79 |
|
114 |
1.6362 |
0.9359 |
143.80 |
152 |
5.021 |
2.679 |
158.06 |
190 |
12.551 |
6.397 |
172.16 |
|
115 |
1.6906 |
0.9650 |
144.17 |
153 |
5.155 |
2.747 |
158.43 |
191 |
12.829 |
6.533 |
172.53 |
|
116 |
1.7465 |
0.9948 |
144.55 |
154 |
5.293 |
2.816 |
158.81 |
192 |
13.111 |
6.671 |
172.90 |
|
117 |
1.8039 |
1.025 |
144.93 |
155 |
5.433 |
2.886 |
159.18 |
193 |
13.398 |
6.812 |
173.26 |
|
118 |
1.8628 |
1.057 |
145.31 |
156 |
5.577 |
2.958 |
159.55 |
194 |
13.690 |
6.955 |
173.63 |
|
119 |
1.9233 |
1.089 |
145.68 |
157 |
5.732 |
3.032 |
159.93 |
195 |
13.987 |
7.100 |
174.00 |
|
120 |
1.9854 |
1.122 |
146.06 |
158 |
5.872 |
3.106 |
160.30 |
196 |
14.298 |
7.248 |
174.37 |
|
121 |
2.0492 |
1.155 |
146.44 |
159 |
6.025 |
3.182 |
160.67 |
197 |
14.596 |
7.398 |
174.74 |
|
122 |
2.1145 |
1.190 |
146.81 |
160 |
6.181 |
3.260 |
161.04 |
198 |
14.909 |
7.551 |
175.10 |
|
123 |
2.1816 |
1.225 |
147.19 |
161 |
6.339 |
3.339 |
161.42 |
199 |
15.226 |
7.706 |
175.47 |
|
124 |
2.2504 |
1.261 |
147.57 |
162 |
6.502 |
3.420 |
161.79 |
200 |
15.549 |
7.864 |
175.84 |
|
125 |
2.3210 |
1.298 |
147.94 |
163 |
6.667 |
3.502 |
162.16 |
201 |
15.877 |
8.025 |
176.21 |
|
126 |
2.3933 |
1.336 |
148.32 |
164 |
6.836 |
3.586 |
162.53 |
202 |
16.210 |
8.188 |
176.57 |
|
127 |
2.4675 |
1.375 |
148.70 |
165 |
7.008 |
3.671 |
162.90 |
203 |
16.549 |
8.354 |
176.94 |
|
128 |
2.5435 |
1.415 |
149.07 |
166 |
7.183 |
3.758 |
163.27 |
204 |
16.893 |
8.522 |
177.31 |
|
129 |
2.6215 |
1.455 |
149.45 |
167 |
7.362 |
3.847 |
163.65 |
205 |
17.243 |
8.694 |
177.68 |
|
130 |
2.7013 |
1.497 |
149.82 |
168 |
7.545 |
3.937 |
164.02 |
206 |
17.598 |
8.868 |
178.04 |
|
131 |
2.7831 |
1.539 |
150.20 |
169 |
7.731 |
4.029 |
164.,, , 39 |
207 |
17.959 |
9.045 |
178.41 |
|
132 |
2.8670 |
1.583 |
150.57 |
170 |
7.920 |
4.123 |
164.76 |
208 |
18.326 |
9.225 |
178.78 |
|
133 |
2.9528 |
1.627 |
150.95 |
171 |
8.114 |
4.218 |
165.13 |
209 |
18.699 |
9.408 |
179.14 |
|
134 |
3.0410 |
1.672 |
151.33 |
172 |
8.311 |
4.316 |
165.50 |
210 |
19.077 |
9.593 |
179.51 |
|
135 |
3.1310 |
1.719 |
151.70 |
173 |
8.511 |
4.415 |
165.87 |
211 |
19.462 |
9.782 |
179.88 |
|
136 |
3.2230 |
1.766 |
152.08 |
174 |
8.716 |
4.515 |
166.24 |
212 |
19.852 |
9.974 |
180.24 |
|
137 |
3.3170 |
1.815 |
152.45 |
175 |
8.924 |
4.618 |
166.61 |
213 |
20.249 |
10.17 |
180.61 |
|
五、飽和水蒸氣密度及鉑電阻-溫度對照表 |
|
分度號：Pt100 R0=100.00Ω 壓力為絕對壓力 |
|
|
|
|
|
|
|
|
|
|
|
|
|
溫度 |
壓力 |
密度 |
鉑電阻 |
溫度 |
壓力 |
密度 |
鉑電阻 |
溫度 |
壓力 |
密度 |
鉑電阻 |
|
℃ |
bar |
kg/m3 |
Ω |
℃ |
bar |
kg/m3 |
Ω |
℃ |
bar |
kg/m3 |
Ω |
|
214 |
20.651 |
10.37 |
180.97 |
252 |
41.138 |
20.69 |
194.80 |
290 |
74.461 |
39.16 |
208.45 |
|
215 |
21.060 |
10.57 |
181.34 |
253 |
41.831 |
21.05 |
195.16 |
291 |
75.551 |
39.81 |
208.81 |
|
216 |
21.475 |
10.77 |
181.71 |
254 |
42.534 |
21.42 |
195.52 |
292 |
76.654 |
40.48 |
209.17 |
|
217 |
21.869 |
10.98 |
182.07 |
255 |
43.246 |
21.79 |
195.88 |
293 |
77.770 |
41.15 |
209.52 |
|
218 |
22.324 |
11.19 |
182.44 |
256 |
43.967 |
22.17 |
196.24 |
294 |
78.897 |
41.83 |
209.88 |
|
219 |
22.758 |
11.41 |
182.80 |
257 |
44.697 |
22.55 |
196.60 |
295 |
80.037 |
42.53 |
210.24 |
|
220 |
23.198 |
11.62 |
183.17 |
258 |
45.437 |
22.94 |
196.96 |
296 |
81.189 |
43.24 |
210.59 |
|
221 |
23.645 |
11.84 |
183.53 |
259 |
46.185 |
23.33 |
197.33 |
297 |
82.355 |
43.96 |
210.95 |
|
222 |
24.099 |
12.07 |
183.90 |
260 |
46.943 |
23.73 |
197.69 |
298 |
83.532 |
44.69 |
211.31 |
|
223 |
24.560 |
12.30 |
184.26 |
261 |
47.711 |
24.14 |
198.05 |
299 |
84.723 |
45.43 |
211.66 |
|
224 |
25.027 |
12.53 |
184.63 |
262 |
48.488 |
24.55 |
198.41 |
300 |
85.927 |
46.19 |
212.02 |
|
225 |
25.501 |
12.76 |
184.99 |
263 |
49.275 |
24.97 |
198.77 |
301 |
87.124 |
46.96 |
212.37 |
|
226 |
25.982 |
13.00 |
185.36 |
264 |
50.071 |
25.40 |
199.13 |
302 |
88.374 |
47.75 |
212.73 |
|
227 |
26.470 |
13.24 |
185.72 |
265 |
50.877 |
25.83 |
199.49 |
303 |
89.617 |
48.54 |
213.09 |
|
228 |
26.965 |
13.49 |
186.09 |
266 |
51.693 |
26.27 |
199.85 |
304 |
90.873 |
49.36 |
213.44 |
|
229 |
27.467 |
13.74 |
186.45 |
267 |
52.519 |
26.72 |
200.21 |
305 |
92.144 |
50.18 |
213.80 |
|
230 |
27.976 |
14.00 |
186.82 |
268 |
53.356 |
27.17 |
200.57 |
306 |
93.427 |
51.02 |
214.15 |
|
231 |
28.493 |
14.25 |
187.18 |
269 |
54.202 |
27.63 |
200.93 |
307 |
94.725 |
51.88 |
214.51 |
|
232 |
29.016 |
14.52 |
187.54 |
270 |
55.058 |
28.10 |
201.29 |
308 |
96.036 |
52.75 |
214.86 |
|
233 |
29.547 |
14.78 |
187.91 |
271 |
55.925 |
28.57 |
201.65 |
309 |
97.361 |
53.64 |
215.22 |
|
234 |
30.086 |
15.05 |
188.27 |
272 |
56.802 |
29.06 |
202.01 |
310 |
98.700 |
54.54 |
215.57 |
|
235 |
30.632 |
15.33 |
188.63 |
273 |
57.689 |
29.55 |
202.36 |
311 |
10.005 |
55.47 |
215.93 |
|
236 |
31.186 |
15.61 |
189.00 |
274 |
58.587 |
30.04 |
202.72 |
312 |
10.142 |
56.40 |
216.28 |
|
237 |
31.747 |
15.89 |
189.36 |
275 |
59.496 |
30.55 |
203.08 |
313 |
10.280 |
57.36 |
216.64 |
|
238 |
32.317 |
16.18 |
189.72 |
276 |
60.415 |
31.06 |
203.44 |
314 |
10.420 |
58.33 |
216.99 |
|
239 |
32.893 |
16.47 |
190.09 |
277 |
61.346 |
31.58 |
203.80 |
315 |
10.561 |
59.33 |
217.35 |
|
240 |
33.478 |
16.76 |
190.45 |
278 |
62.287 |
32.11 |
204.16 |
316 |
10.704 |
60.34 |
217.70 |
|
241 |
34.071 |
17.06 |
190.81 |
279 |
63.239 |
32.65 |
204.52 |
317 |
10.848 |
61.37 |
218.05 |
|
242 |
34.672 |
17.37 |
191.18 |
280 |
64.202 |
33.19 |
204.88 |
318 |
10.993 |
62.43 |
218.41 |
|
243 |
35.281 |
17.68 |
191.54 |
281 |
65.176 |
33.75 |
205.23 |
319 |
11.140 |
63.50 |
218.76 |
|
244 |
35.898 |
17.99 |
191.90 |
282 |
66.162 |
34.31 |
205.59 |
320 |
11.289 |
64.60 |
219.12 |
|
245 |
36.523 |
18.31 |
192.26 |
283 |
67.158 |
34.88 |
205.95 |
325 |
12.056 |
70.45 |
220.88 |
|
246 |
37.157 |
18.64 |
192.63 |
284 |
68.167 |
35.47 |
206.31 |
330 |
12.863 |
76.99 |
222.65 |
|
247 |
37.799 |
18.97 |
192.99 |
285 |
69.186 |
36.06 |
206.67 |
335 |
13.712 |
84.36 |
224.41 |
|
248 |
38.449 |
19.30 |
193.35 |
286 |
70.218 |
36.66 |
207.02 |
340 |
14.605 |
92.76 |
226.17 |
|
249 |
39.108 |
19.64 |
193.71 |
287 |
71.261 |
37.27 |
207.38 |
345 |
15.545 |
102.4 |
227.92 |
|
250 |
39.776 |
19.99 |
194.07 |
288 |
72.315 |
37.89 |
207.74 |
350 |
16.535 |
113.6 |
229.67 |
|
251 |
40.452 |
20.36 |
194.44 |
289 |
73.382 |
38.52 |
208.10 |
355 |
17.577 |
127.2 |
231.42 |
|
六、過熱蒸氣密度表（Kg/m3) |
|
絕對壓力 |
溫度t(℃) |
|
p/MPa |
140 |
150 |
160 |
170 |
180 |
190 |
200 |
210 |
220 |
230 |
240 |
|
0.20 |
1.070 |
1.042 |
1.016 |
0.992 |
0.969 |
0.947 |
0.926 |
0.906 |
0.887 |
0.868 |
0.851 |
|
0.30 |
1.622 |
1.578 |
1.537 |
1.499 |
1.463 |
1.428 |
1.396 |
1.365 |
1.336 |
1.308 |
1.281 |
|
0.40 |
- |
2.127 |
2.067 |
2.014 |
1.964 |
1.916 |
1.872 |
1.829 |
1.789 |
1.751 |
1.715 |
|
0.50 |
- |
- |
2.608 |
2.538 |
2.472 |
2.411 |
2.353 |
2.299 |
2.247 |
2.198 |
2.152 |
|
0.55 |
- |
- |
2.882 |
2.803 |
2.729 |
2.661 |
2.596 |
2.535 |
2.478 |
2.424 |
2.372 |
|
0.60 |
- |
- |
3.159 |
3.071 |
2.989 |
2.912 |
2.841 |
2.773 |
2.710 |
2.650 |
2.593 |
|
0.65 |
- |
- |
- |
3.341 |
3.250 |
3.165 |
3.087 |
3.013 |
2.943 |
2.877 |
2.815 |
|
0.70 |
- |
- |
- |
3.614 |
3.514 |
3.421 |
3.334 |
3.253 |
3.117 |
3.105 |
3.037 |
|
0.75 |
- |
- |
- |
3.889 |
3.779 |
3.678 |
3.584 |
3.495 |
3.413 |
3.335 |
3.261 |
|
0.80 |
- |
- |
- |
- |
4.048 |
3.937 |
3.835 |
3.739 |
3.649 |
3.565 |
3.486 |
|
0.85 |
- |
- |
- |
- |
4.318 |
4.198 |
4.087 |
3.984 |
3.887 |
3.797 |
3.711 |
|
0.90 |
- |
- |
- |
- |
4.591 |
4.461 |
4.342 |
4.231 |
4.127 |
4.030 |
3.938 |
|
1.00 |
- |
- |
- |
- |
5.145 |
4.995 |
4.856 |
4.729 |
4.610 |
4.499 |
4.395 |
|
1.10 |
- |
- |
- |
- |
- |
5.537 |
5.379 |
5.233 |
5.098 |
4.973 |
4.855 |
|
1.20 |
- |
- |
- |
- |
- |
6.089 |
5.909 |
5.744 |
5.593 |
5.452 |
5.321 |
|
1.30 |
- |
- |
- |
- |
- |
- |
6.448 |
6.263 |
6.093 |
5.936 |
5.790 |
|
1.40 |
- |
- |
- |
- |
- |
- |
6.996 |
6.789 |
6.600 |
6.426 |
6.265 |
|
1.50 |
- |
- |
- |
- |
- |
- |
7.554 |
7.324 |
7.114 |
6.922 |
6.744 |
|
1.60 |
- |
- |
- |
- |
- |
- |
- |
7.867 |
7.635 |
7.424 |
7.229 |
|
1.70 |
- |
- |
- |
- |
- |
- |
- |
8.418 |
8.163 |
7.931 |
7.719 |
|
1.80 |
- |
- |
- |
- |
- |
- |
- |
8.978 |
8.699 |
8.446 |
8.214 |
|
1.90 |
- |
- |
- |
- |
- |
- |
- |
9.548 |
9.243 |
8.967 |
8.715 |
|
2.00 |
- |
- |
- |
- |
- |
- |
- |
- |
9.795 |
9.495 |
9.222 |
|
2.10 |
- |
- |
- |
- |
- |
- |
- |
- |
10.36 |
10.03 |
9.735 |
|
2.20 |
- |
- |
- |
- |
- |
- |
- |
- |
10.93 |
10.57 |
10.25 |
|
2.30 |
- |
- |
- |
- |
- |
- |
- |
- |
11.51 |
11.12 |
10.78 |
|
2.40 |
- |
- |
- |
- |
- |
- |
- |
- |
- |
11.68 |
11.31 |
|
2.50 |
- |
- |
- |
- |
- |
- |
- |
- |
- |
12.25 |
11.85 |
|
2.60 |
- |
- |
- |
- |
- |
- |
- |
- |
- |
12.83 |
12.40 |
|
2.70 |
- |
- |
- |
- |
- |
- |
- |
- |
- |
13.41 |
12.96 |
|
2.80 |
- |
- |
- |
- |
- |
- |
- |
- |
- |
- |
13.52 |
|
2.90 |
- |
- |
- |
- |
- |
- |
- |
- |
- |
- |
14.09 |
|
3.00 |
- |
- |
- |
- |
- |
- |
- |
- |
- |
- |
14.67 |
|
3.10 |
- |
- |
- |
- |
- |
- |
- |
- |
- |
- |
15.26 |
|
3.20 |
- |
- |
- |
- |
- |
- |
- |
- |
- |
- |
15.86 |
|
3.30 |
- |
- |
- |
- |
- |
- |
- |
- |
- |
- |
16.47 |
|
3.40 |
- |
- |
- |
- |
- |
- |
- |
- |
- |
- |
- |
|
3.50 |
- |
- |
- |
- |
- |
- |
- |
- |
- |
- |
- |
|
4.00 |
- |
- |
- |
- |
- |
- |
- |
- |
- |
- |
- |
|
七、過熱蒸氣密度表（Kg/m3) |
|
絕對壓力 |
溫度t(℃) |
|
p/MPa |
250 |
260 |
270 |
280 |
290 |
300 |
310 |
320 |
330 |
340 |
350 |
|
0.20 |
0.834 |
0.818 |
0.803 |
0.788 |
0.774 |
0.760 |
0.747 |
0.734 |
0.721 |
0.709 |
0.698 |
|
0.30 |
1.256 |
1.230 |
1.208 |
1.185 |
1.163 |
1.142 |
1.122 |
1.103 |
1.084 |
1.066 |
1.049 |
|
0.40 |
1.680 |
1.647 |
1.615 |
1.585 |
1.555 |
1.527 |
1.500 |
1.474 |
1.449 |
1.424 |
1.401 |
|
0.50 |
2.108 |
2.066 |
2.025 |
1.986 |
1.949 |
1.914 |
1.879 |
1.846 |
1.814 |
1.784 |
1.754 |
|
0.55 |
2.323 |
2.276 |
2.231 |
2.188 |
2.147 |
2.108 |
2.070 |
2.033 |
1.998 |
1.964 |
1.931 |
|
0.60 |
2.539 |
2.487 |
2.438 |
2.391 |
2.345 |
2.302 |
2.260 |
2.220 |
2.182 |
2.145 |
2.109 |
|
0.65 |
2.755 |
2.699 |
2.696 |
2.594 |
2.544 |
2.497 |
2.452 |
2.408 |
2.366 |
2.326 |
2.287 |
|
0.70 |
2.973 |
2.912 |
2.853 |
2.797 |
2.744 |
2.693 |
2.643 |
2.596 |
2.551 |
2.507 |
2.465 |
|
0.75 |
3.191 |
3.125 |
3.062 |
3.001 |
2.994 |
2.889 |
2.836 |
2.785 |
2.736 |
2.689 |
2.643 |
|
0.80 |
3.411 |
3.339 |
3.271 |
3.206 |
3.144 |
3.085 |
3.028 |
2.974 |
2.921 |
2.871 |
2.822 |
|
0.85 |
3.631 |
3.554 |
3.481 |
3.412 |
3.345 |
3.282 |
3.221 |
3.163 |
3.107 |
3.053 |
3.001 |
|
0.90 |
3.852 |
3.770 |
3.692 |
3.618 |
3.547 |
3.480 |
3.415 |
3.353 |
3.293 |
3.236 |
3.181 |
|
1.00 |
4.296 |
4.204 |
4.116 |
4.032 |
3.952 |
3.876 |
3.804 |
3.734 |
3.667 |
3.603 |
3.541 |
|
1.10 |
4.745 |
4.641 |
4.542 |
4.449 |
4.360 |
4.275 |
4.194 |
4.116 |
4.042 |
3.971 |
3.902 |
|
1.20 |
5.198 |
5.082 |
4.972 |
4.869 |
4.770 |
4.676 |
4.587 |
4.501 |
4.419 |
4.340 |
4.265 |
|
1.30 |
5.654 |
5.526 |
5.405 |
5.291 |
5.182 |
5.079 |
4.981 |
4.887 |
4.798 |
4.711 |
4.629 |
|
1.40 |
6.114 |
5.974 |
5.841 |
5.716 |
5.598 |
5.485 |
5.378 |
5.275 |
5.178 |
5.084 |
4.994 |
|
1.50 |
6.579 |
6.425 |
6.280 |
6.144 |
6.015 |
5.893 |
5.776 |
5.665 |
5.560 |
5.458 |
5.361 |
|
1.60 |
7.049 |
6.880 |
6.723 |
6.575 |
6.435 |
6.303 |
6.177 |
6.057 |
5.943 |
5.834 |
5.729 |
|
1.70 |
7.522 |
7.340 |
7.169 |
7.009 |
6.858 |
6.715 |
6.580 |
6.451 |
6.329 |
6.211 |
6.099 |
|
1.80 |
8.001 |
7.803 |
7.619 |
7.446 |
7.284 |
7.131 |
6.985 |
6.847 |
6.716 |
6.590 |
6.470 |
|
1.90 |
8.484 |
8.271 |
8.072 |
7.886 |
7.712 |
7.584 |
7.393 |
7.245 |
7.105 |
6.971 |
6.843 |
|
2.00 |
8.973 |
8.743 |
8.529 |
8.330 |
8.144 |
7.968 |
7.802 |
7.645 |
7.496 |
7.353 |
7.217 |
|
2.10 |
9.466 |
9.219 |
8.990 |
8.777 |
8.578 |
8.391 |
8.214 |
8.047 |
7.888 |
7.737 |
7.593 |
|
2.20 |
9.965 |
9.700 |
9.455 |
9.228 |
9.015 |
, 9.965 |
8.628 |
8.451 |
8.283 |
8.123 |
7.970 |
|
2.30 |
10.47 |
10.19 |
9., 924 |
9.682 |
9.456 |
9.244 |
9.045 |
8.857 |
8.679 |
8.510 |
8.349 |
|
2.40 |
10.98 |
10.68 |
10.40 |
10.14 |
9.899 |
9.675 |
9.464 |
9.266 |
9.078 |
8.899 |
8.730 |
|
2.50 |
11.50 |
11.17 |
10.87 |
10.60 |
10.35 |
10.11 |
9.886 |
9.676 |
9.478 |
9.290 |
9.112 |
|
2.60 |
12.02 |
11.67 |
11.36 |
11.07 |
10.80 |
10.55 |
10.31 |
10.09 |
9.880 |
9.683 |
9.495 |
|
2.70 |
12.55 |
12.18 |
11.84 |
11.53 |
11.25 |
10.98 |
10.74 |
10.50 |
10.28 |
10.08 |
9.880 |
|
2.80 |
13.08 |
12.69 |
12.33 |
12.01 |
11.71 |
11.43 |
11.17 |
10.92 |
10.69 |
10.47 |
10.27 |
|
2.90 |
13.62 |
13.21 |
12.83 |
12.48 |
12.17 |
11.87 |
11.60 |
11.34 |
11.10 |
10.87 |
10.66 |
|
3.00 |
14.17 |
13.73 |
13.33 |
12.97 |
12.63 |
12.32 |
12.03 |
11.76 |
11.51 |
11.27 |
11.05 |
|
3.10 |
14.73 |
14.26 |
13.84 |
13.45 |
13.10 |
12.77 |
12.47 |
12.19 |
11.92 |
11.67 |
11.44 |
|
3.20 |
15.30 |
14.80 |
14.35 |
13.94 |
13.57 |
13.23 |
12.91 |
12.62 |
12.34 |
12.08 |
11.83 |
|
3.30 |
15.87 |
15.34 |
14.86 |
14.44 |
14.05 |
13.69 |
13.36 |
13.05 |
12.76 |
12.48 |
12.23 |
|
3.40 |
16.45 |
15.89 |
15.39 |
14.94 |
14.53 |
14.15 |
13.80 |
13.48 |
13.18 |
12.89 |
12.63 |
|
3.50 |
17.04 |
16.44 |
15.91 |
15.44 |
15.01 |
14.61 |
14.25 |
13.91 |
13.60 |
13.30 |
13.02 |
|
4.00 |
- |
19.34 |
18.65 |
18.04 |
17.49 |
17.00 |
16.55 |
16.13 |
15.74 |
15.39 |
15.05 |
八、產品選型：
|
規格代碼 |
說明 |
|
企標 |
ARS |
|
|
儀表種類 |
L |
流量?jī)x表 |
|
工作原理 |
U |
卡門渦街 |
|
產品種類 |
B |
普通型 |
|
C |
固定插入式 |
|
G |
就地顯示 |
|
安裝型式 |
-2 |
法蘭卡裝 |
|
被測流體 |
2 |
液體 |
|
3 |
氣體 |
|
通徑代碼 |
-01B |
通徑15mm |
|
02A |
通徑20mm |
|
02 |
通徑25mm |
|
03 |
通徑32mm |
|
04 |
通徑40mm |
|
05 |
通徑50mm |
|
06 |
通徑65mm |
|
08 |
通徑80mm |
|
10 |
通徑100mm |
|
12 |
通徑125mm |
|
15 |
通徑150mm |
|
20 |
通徑200mm |
|
25 |
通徑250mm |
|
30 |
通徑300mm |
|
35 |
通徑350mm |
|
40 |
通徑400mm |
|
45 |
通徑450mm |
|
50 |
通徑500mm |
|
XX(僅插入式) |
通徑XX*10mm |
|
表體材質 |
C |
碳鋼 |
|
F |
不銹鋼 |
|
轉換器型式 |
-1 |
組合式 |
|
輸出信號 |
1 |
脈沖頻率輸出 |
|
2 |
0-10mA輸出 |
|
3 |
4-12mA輸出 |
|
流體溫度 |
1 |
普通型-40┈+250oC |
|
3 |
高溫型+250oC┈+350oC |
九、蒸汽流量測量方案：
1、飽和蒸汽用脈沖輸出型渦街流量計+壓力變送器+流量積算儀。
2、飽和蒸汽用脈沖輸出型渦街流量計+溫度傳感器+流量積算儀。
3、飽和蒸汽用一體化壓力補償渦街流量計。
4、飽和蒸汽用一體化溫度補償渦街流量計。
5、過熱蒸汽用脈沖輸出型渦街流量計+壓力變送器+溫度傳感器+流量積算儀。
6、過熱蒸汽用一體化溫壓補償渦街流量計。 |
產品列表
